This alloy Other important features of Nickel Alloy C-276 and Hastelloy C-276 include its resistance to oxidizers like:
Ferric and cupric chlorides
Organic and inorganic hot contaminated media
Chlorine (wet chlorine gas)
Seawater
Acids
Hypochlorite
Chlorine dioxide
As well, Nickel Alloy C-276 and Hastelloy C-276 is weldable with all common methods of welding (oxyacetylene is not recommended). Because of Hastelloy C-276’s outstanding corrosion resistant capabilities, it is used by a wide variety of industries for critical applications including:
Almost anything used around sulfuric acid (heat exchangers, evaporators, filters, and mixers)
Bleach plants and digesters for the manufacturing of paper and pulp
Components used around sour gas
Marine engineering
Waste treatment
Pollution control
The chemical composition make them unique and include:
Ni 57%
Mo 15-17%
Cr 14.5-16.5%
Fe 4-7%
W 3-4.5%
Mn 1% max
Co 2.5% max
V .35% max
Si .08 max

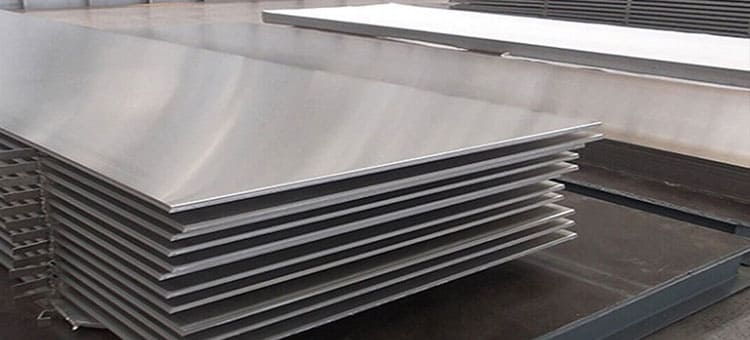

At Jiangsu HYT, we distribute Nickel Alloy C-276 and Hastelloy C-276 in fittings, plate, pipe round bar, strip, sheet, and tube. All of the mills we work with provide Nickel Alloy C-276 and Hastelloy C-276 that meets or exceeds industry standards including ASME Boiler and Pressure Vessel Code.
We stock and sell Nickel Alloy C-276 and Hastelloy C-276 in Fittings, Plate, Pipe, Round Bar, Strip, Sheet & Tube.
Tip: Click the 'C-276 Products' product details tag to find out specific C-276 alloy product HYT can offer and their size, thickness, etc.
Chemical Composition of Nickel Alloy C-276 Hastelloy C-276
| Element | Min | Max |
| C | - | 0.02 |
| Si | - | 0.08 |
| Mn | - | 1 |
| P | - | 0.03 |
| S | - | 0.3 |
| Co | - | 2.5 |
| Fe | 4 | 7 |
| Cr | 14.5 | 16.5 |
| Cu | 3 | 4.5 |
| Mo | 15 | 17 |
| V | - | 0.35 |
| Ni | Balance | |
Physical Properties of of Nickel Alloy C-276 Hastelloy C-276 (Room Temperature)
| Specific Heat (0-100°C) | 427 | J.kg-1.°K-1 |
| Thermal Conductivity | 9.4 | W.m -1.°K-1 |
| Thermal Expansion | 11.2 | μm/μm/°C |
| Modulus Elasticity | 221 | GPa |
| Electrical Resistivity | 1.30 | μohm/cm |
| Density | 8.89 | g/cm3 |
Mechanical Properties of Nickel Alloy C-276 Hastelloy C-276
| Temper | Annealed | |
| Tensile Rm | 100 | ksi (min) |
| Tensile Rm | 690 | MPa (min) |
| R.p. 0.2% Yield | 41 | ksi (min) |
| R.p. 0.2% Yield | 290 | MPa (min) |
| Elongation (2” or 4D gl) | 40 | % (min) |
Tip: Click the 'C-276 Products' product details tag to find out specific C-276 alloy product HYT can offer and their size, thickness, etc.
